Well And Jack Nut Kit
Well And Jack Nut Kit

Bookmark and Share
Package Price: $187.40



Availability: Usually Ships in 1 to 2 Business Days
PRODUCT CODE: A6524
QTY (# Of Packages):

Description

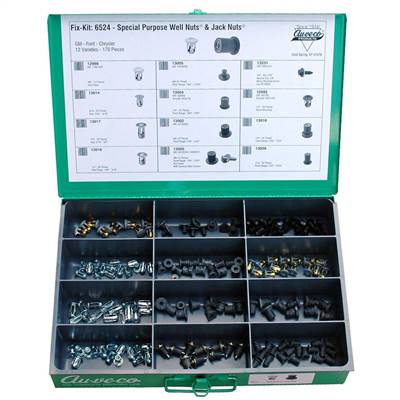

  • Number 6524 "Fix-Kit"
  • Special Purpose Well Nuts and Jack Nuts
  • O.E.M. Application
  • GM - Ford - Chrysler - AMC
  • 12 Varieties:
    • A12995
      • GM Mirror Mounting Jack Nut
      • Zinc with Sealer
      • Thread: 1/4-20
      • Replaces GM: 367292; Chrysler: 6031438
    • A12999
      • Roof Rack Mounting Jack Nuts
      • Zinc w/ Raintite
      • M6 - 1.0
      • Replaces GM: 14007940 X & Y Bodies
    • A13000
      • Thread: M6-1.0 With #10 Head Stainless Steel Screw
      • Head Diameter: .787"
      • Overall Length: .630"
      • Shank Length: .579"
      • Shank Diameter: .500"
      • Head Thickness: .051"
      • Hole Size: 1/2"
      • Grip Range: .015-.094"
      • Replaces GM: 20130258; AMC: 8934201293
    • A13002
      • Thread: M6-1.0
      • Head Diameter: .787"
      • Overall Length: .630"
      • Shank Length: .579"
      • Shank Diameter: .500"
      • Head Thickness: .051"
      • Hole Size: 1/2"
      • Grip Range: .015-.094"
      • Replaces GM: 20130258; AMC: 8934201293
    • A13004
      • Thread: 1/4-20
      • Head Diameter: .625"
      • Overall Length: .641"
      • Shank Length: .594"
      • Shank Diameter: .500"
      • Head Thickness: .051"
      • Hole Size: 1/2"
      • Grip Range: .015-.094"
      • Replaces GM: 1528846; AMC: 4003120
    • A13005
      • Thread: #8-32
      • Head Diameter: .750"
      • Overall Length: .575"
      • Shank Length: .500"
      • Shank Diameter: .312"
      • Head Thickness: .062"
      • Hole Size: 5/16"
      • Grip Range: .015-.172"
      • Replaces GM: 14048060 License Plate
    • A13009
      • Thread: #10-32
      • Head Diameter: .562"
      • Overall Length: .665"
      • Shank Length: .625"
      • Shank Diameter: .377"
      • Head Thickness: .040"
      • Hole Size: 3/8"
      • Grip Range: .035-.232"
      • Replaces GM: 12338025
    • A13010
      • Thread: 1/4-20
      • Head Diameter: .740"
      • Overall Length: .829"
      • Shank Length: .642"
      • Shank Diameter: .500"
      • Head Thickness: .187"
      • Hole Size: 1/2"
      • Grip Range: .031-.187"
    • A13014
      • Jack Nuts
      • 1010 Steel Zinc Plated
      • Thread: 10-24
      • Body Diameter: .382
      • Head Diameter: .531
      • Cap Thick: .073
      • Overall Length: .716
      • Grip Range: 1/64"-3/16"
      • Required Hole Diameter: .385-.400
      • Maximum Spread: .760
    • A13016
      • 1010 Steel Zinc Plated
      • Thread: 1/4"-20
      • Body Diameter: .438
      • Head Diameter: .625
      • Cap Thick: .073
      • Overall Length: .731
      • Grip Range: 1/64"-3/16"
      • Required Hole Diameter: .434-.450
      • Maximum Spread: .890
    • A13017
      • 1010 Steel Zinc Plated
      • Thread: 1/4"-20
      • Body Diameter: .438
      • Head Diameter: .625
      • Cap Thick: .073
      • Overall Length: .919
      • Grip Range: 3/16"-3/8"
      • Required Hole Diameter: .434-.450
      • Maximum Spread: .890
    • A13231
      • 1/4"-20 x 7/8"
      • Hex Washer Head With Sems Nylon Washer
      • 5/8" Washer O.D.
      • 3/8" Hex
      • Phosphate Organic
      • Truck Mirror Mounting Screw
      • Replaces GM: 14007510
  • 170 Pieces Per Package

    View Catalog Page
    •
